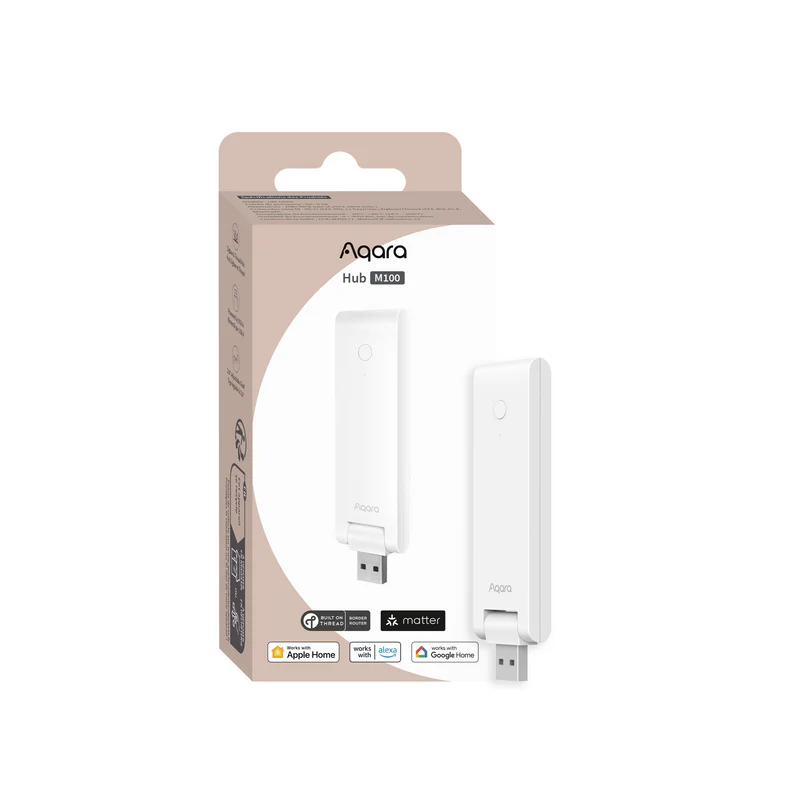

Aqara Hub M100

Meet the Aqara Hub M100: Your smart home, simplified.
This versatile hub unites Zigbee and Thread devices into one seamless network with Wi-Fi 6 speed. Ready to bridge your devices to any Matter ecosystem, it’s powered by USB-A for flexible setup anywhere. Smart, simple, and future-ready—upgrade to the M100 and streamline your smart home effortlessly.

Key Features

• Matter Hub for Aqara and Third-Party Devices
  Seamlessly connect Aqara Zigbee/Thread devices to Apple Home, Google Home, Amazon Alexa, and more. The Hub M100 acts as both a Matter Bridge and Matter Controller, enabling advanced automations across a wide range of smart devices.*

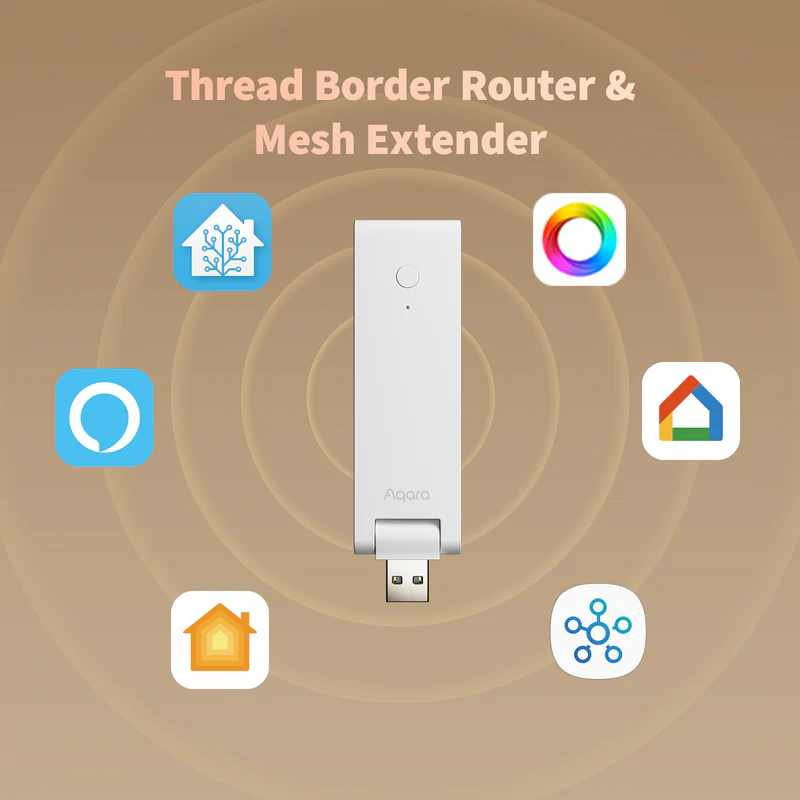

• Thread Border Router & Mesh Extender
  Acts as a Thread Border Router to extend and stabilize your smart network using mesh technology. Ensures better coverage and reliability for Thread-enabled devices.

• Local Automations
  Supports offline execution of automations for Zigbee and Thread devices. Faster response times, better privacy, and increased reliability—even when the internet is down.**

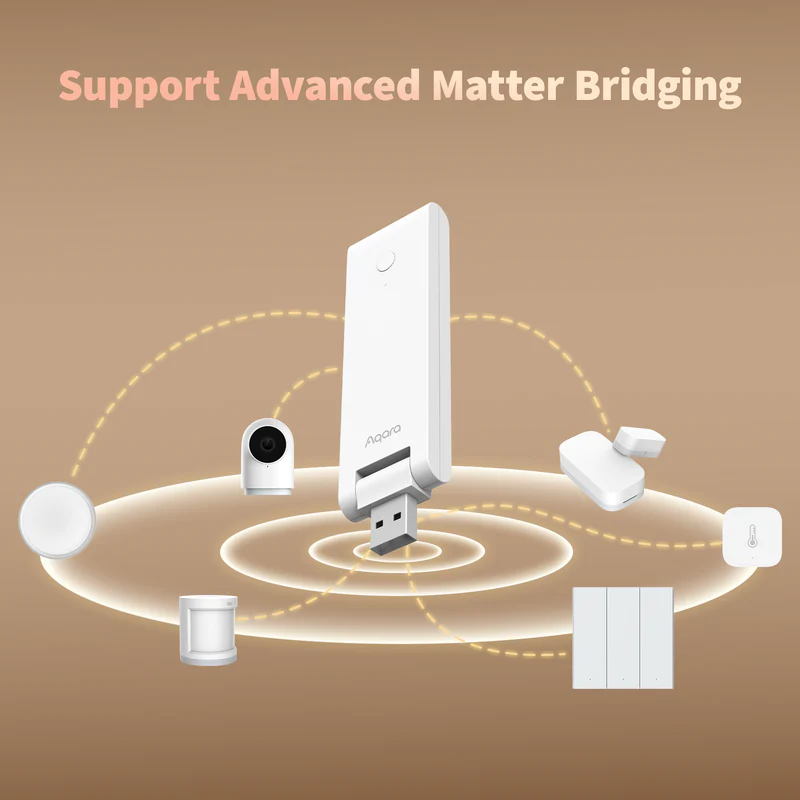

• Advanced Matter Bridging
  Enables advanced integrations across ecosystems like Home Assistant, maintaining full functionality of Aqara features and third-party Matter devices.

• Wi-Fi 6 with WPA3 Security
  Supports 2.4GHz Wi-Fi 6 for fast, efficient connections, even in busy smart homes. Includes the latest WPA3 encryption for secure data transfer.

• Universal USB-A Interface
  Plug-and-play USB-A connection allows easy installation—power it from a USB charger, router, PC, or power bank.

Example Automations

1. Water Leak Alert
Get notified on your phone when a leak is detected. Automate shutoff with the Valve Controller T1.
Devices: Hub M100 + Water Leak Sensor + Valve Controller T1

2. Smart Roller Shade Control
Automate roller shades based on schedule or location. Control them via app or voice.
Devices: Hub M100 + Roller Shade Driver E1

3. Automated Lighting
Lights turn on when motion is detected and turn off when no one’s around. Hands-free and energy-saving.
Devices: Hub M100 + Wall Switch + Motion Sensor P1

Specifications

• Product Name: Aqara Hub M100

• Model No.: HM-G02D

• Color: White

• Wireless Protocols:

  • Zigbee/Thread IEEE 802.15.4 (router/repeater)

  • Wi-Fi IEEE 802.11 b/g/n/ax 2.4 GHz

  • BLE 5.2

• Ports: USB-A (male)

• Power Input: 5V ⎓ 0.5A

• Operating Temperature: -10°C to +40°C (14°F ~ 104°F)

• Operating Humidity: 0%～95%, non-condensing

• Product Size: 108 × 30 × 8 mm (4.25 × 1.18 × 0.31 in.)

• Net Weight: 40g (1.41 oz)

• What’s in the Box:

  • Hub M100 × 1

  • User Manual × 1

Disclaimers

• To use the device with a specific Matter ecosystem, a Matter Controller of that ecosystem is required. Hub M100 supports up to 20 Zigbee devices or up to 40 devices total (Zigbee + Thread + Wi-Fi).

• Some automations, like cloud notifications, require internet access to function.
